Termo 65 VS i VP

Eingangstür

Das TERMO 65 VS I VP-System ist für die Herstellung von Eingangstüren bestimmt und besteht aus folgenden Gruppen:

  • Termo 65 VS nach außen öffnend (Eingangstür mit Glasfüllung)
  • Termo 65 VS nach innen öffnend (Eingangstür mit Glasfüllung)
  • Termo 65 VP nach innen öffnend (Eingangstür mit Paneelfüllung)

    • Das System ermöglicht die Ausführung verschiedener Öffnungstypen:

      • Einflügeltür
      • Einflügeltür mit dem festen Seitenteil
      • Einflügeltür mit dem festen und öffnenden Oberlicht
      • Zweiflügeltür
      • Zweiflügeltür mit dem festen Seitenteil
      • Zweiflügeltür mit dem festen und öffnenden Oberlicht

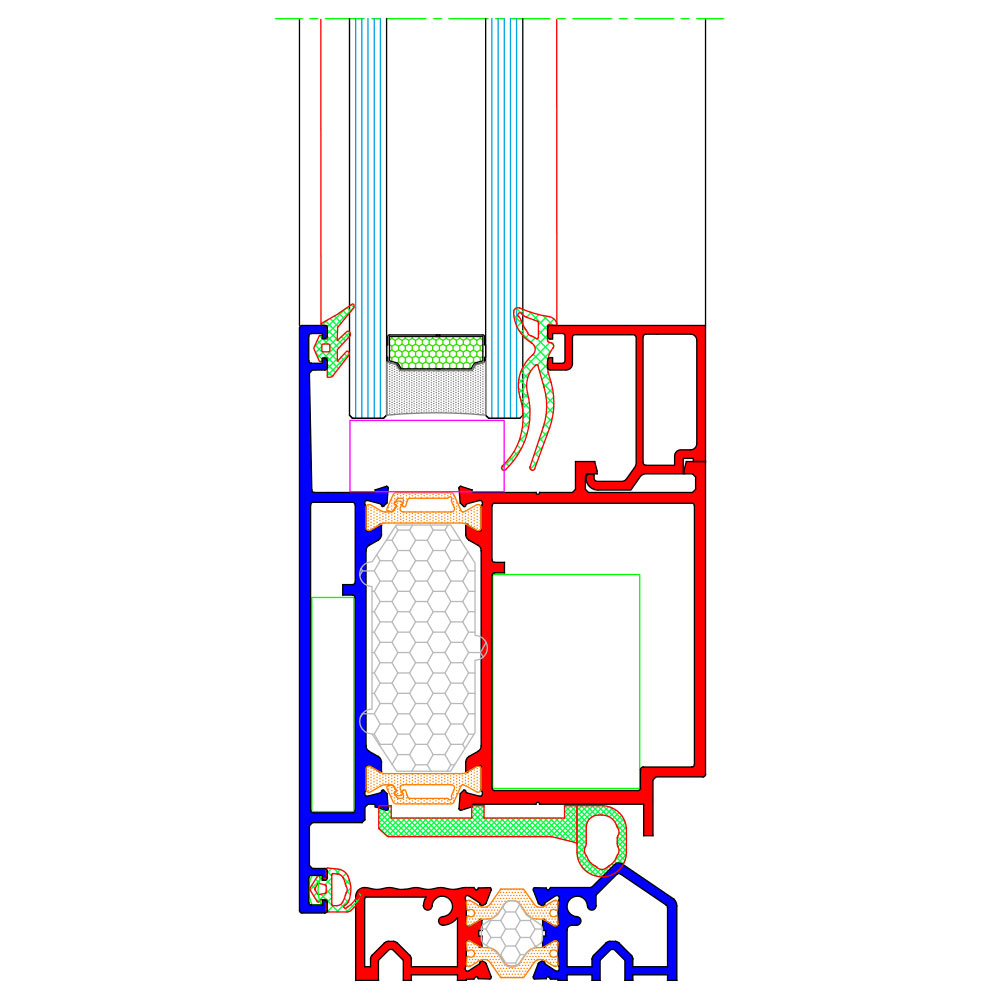

        • Die Profile haben unterbrochene Wärmebrücke und Grundeinbautiefe des Rahmens von 65 mm. Die Unterbrechung der Wärmebrücke erfolgt mit Polyamidbändern (22 und 18,6 mm für den Rahmen und 18,6 mm für den Flügel). Um die thermischen Eigenschaften weiter zu verbessern, werden profilierte XPS-Stäbe (extrudiertes Polystyrol - ʎ = 0,035 W/m2K) in die Profilkammern eingebaut und solche Profile mit dem Buchstaben F gekennzeichnet. Die Abdichtung zwischen Flügel und Rahmen erfolgt mit EPDM-Dichtungen.


          Technische Eigenschaften des Systems:

          Rahmentiefe: 65 mm
          Flügeltiefe: 65.6 mm
          Fülltiefe: bis 51 mm
          Polymaidbänder: 22 und 18,6 mm (Rahmen); 18,6 (Flügel)
          max.Flügelgewicht: 160 kg
          Luftdurchlässigkeit: EN 12207 (Klasse 4)
          Wasserdichtigkeit: EN 12208 (klasa 8A)
          Windwiderstand: EN 12210 (klasa C3)
          Lärmschutz: DIN 4109
          Einbruchhemmung: EN 1627
          Berechnung des Uw-Koeffizienten: DIN EN ISO 10077-2 (≥1.7 Wm²/K)
          Grundwerkstoff: EN AW-6060
          Material des Polyamidbandes: PA66 GF25
          Dichtungsmaterial: EPDM
          Oberflächenbehandlung: DIN 17611
          Qualitätskontrolle: DIN EN ISO 9001

TERMO-65-VS-1
Termo-65-VS
TERMO-65-VP-tt
