FEAL Termo 120

  • Start
  • FEAL Bausysteme
  • FEAL Termo 120
FEAL Termo 80
FEAL Termo 150

Termo 120

Schiebesysteme

Das TERMO 120-System wird je nach Glasstärke und Ausführungsschema wie folgt unterteilt:

  • Termo 120 ist für die Herstellung von Schiebe- und Hebe-Schiebe-Fenstern und -türen (Doppelglas) in Ausführungen mit zwei, drei und vier Flügeln vorgesehen.
  • Termo 120 plus ist für die Herstellung von Schiebe- und Hebe-Schieb-Fenstern und -türen (Doppelglas) mit integriertem fixiertem Teil vorgesehen.
  • Termo 120-D ist für die Herstellung von Schiebe- und Hebe-Schiebe-Fenstern und -türen (Dreifachglas) in Ausführungen mit zwei, drei und vier Flügeln vorgesehen.
  • Termo 120-D plus ist für die Herstellung von Schiebe- und Hebe-Schiebe-Fenstern und -türen (Dreifachglas) mit integriertem fixiertem Teil vorgesehen.

Das ist ein Profilsystem mit unterbrochener Wärmebrücke und einer Grundeinbautiefen des Rahmens von 120 und 196,5 mm. Die Unterbrechung der Wärmebrücke wird mit Polyamidbändern von 14,8 und 22 mm (Termo 120); 20 und 28 (Termo 120-D) erreicht. Um die thermischen Eigenschaften des Profils weiter zu verbessern, werden profilierte XPS-Stäbe (extrudiertes Polystyrol - ʎ = 0,035 W/m2K) in die Profilkammern eingebaut und solche Profile mit dem Buchstaben F gekennzeichnet. Die Abdichtung erfolgt mit EPDM-Dichtungen. Das System ist kompatibel mit Fassadensystemen. Möglichkeit der versteckten Wasserableitung aus dem Rahmen.



Technische Eigenschaften des Systems:

Rahmentiefe: 120 mm (zwei Spuren Termo 120), 184,5 mm (drei Spuren Termo 120), 115,5 mm (Termo 120 plus), 126 mm (zwei Spuren Termo 120-D), 196,5 mm (drei Spuren Termo 120-D), 126 mm (Termo 120-D plus)
Flügeltiefe: 50,5 mm (Termo 120) und 55,7 (Termo 120-D)
Fülltiefe: bis 44 mm
Polymaidbänder:14,8 und 22 mm (für Termo 120); 20 und 28 (für Termo120-D)
Flügelgewicht: 330 kg
Luftdurchlässigkeit: EN 12207 (Klasse 4)
Wasserdichtigkeit: EN 12208 (Klasse E900)
Windwiderstand: EN 12210 (Klasse C4/B4)
Lärmschutz: DIN 4109 (Rw=33 dB)
Einbruchhemmung: EN 1627 (RC2)
Berechnung des Uw-Koeffizienten: DIN EN ISO 10077-2 (≥1,4 Wm²/K)
Grundwerkstoff: EN AW-6060
Material des Polyamidbandes: PA66 GF25
Dichtungsmaterial: EPDM
Oberflächenbehandlung: DIN 17611
Qualitätskontrolle: DIN EN ISO 9001

Termo-120
Termo-120-2

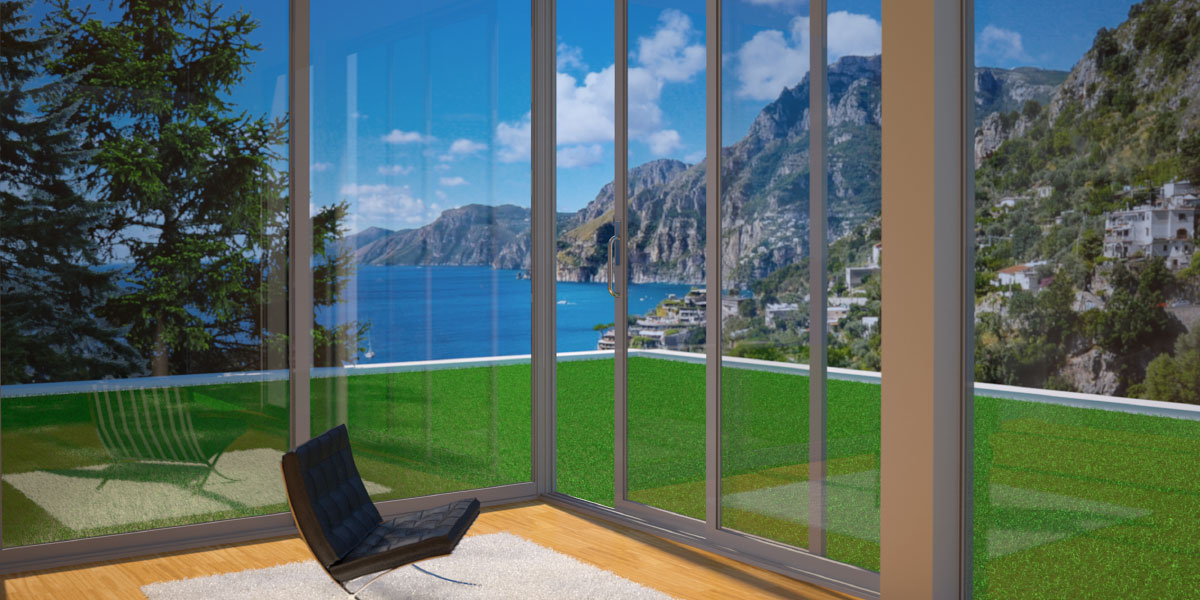

termo-120-slide
