INOWA

Schiebesysteme

Das INOWA-System ist für die Herstellung von klappbaren Schiebetüren mit integriertem fixiertem Teil vorgesehen. INOWA ist ein System, das sich durch hervorragende thermische (Uw ≥ 1,1 Wm²/K) und statische Eigenschaften (Klasse C5/B5) auszeichnet. INOWA ist ein Profilsystem mit einer unterbrochenen Wärmebrücke und einer Rahmeneinbautiefe von 156 mm. Die Unterbrechung der Wärmebrücke wird mit Polyamidstreifen von 32 mm für den Rahmen und 30 mm für den Flügel erreicht. Um die thermischen Eigenschaften des Profils weiter zu verbessern, werden profilierte XPS-Stäbe (extrudiertes Polystyrol - ʎ = 0,035 W/mK) in die Profilkammern eingebaut und solche Profile mit dem Buchstaben F gekennzeichnet. Im Gegensatz zu anderen Schiebe- und Hebe-Schiebe-Systemen hat Inowa parallele Bewegung des Flügels in Bezug auf den Rahmen +/- 8 mm mit innerer und äußerer Dichtung entlang des gesamten Flügelumfangs, was Spitzeneigenschaften hinsichtlich Luftdurchlässigkeit, Wasserdichtigkeit und Beständigkeit gegen Windlast ermöglicht. Die Versiegelung wurde mit EPDM-Dichtungen durchgeführt. Das System ist kompatibel mit Fassadensystemen. Möglichkeit der versteckten Wasserableitung aus dem Rahmen.



Technische Eigenschaften des Systems:

Rahmentiefe: 156 mm
Flügeltiefe: 70 mm
Fülltiefe: bis 46 mm
Polyamidbänder: 30 i 32 mm
max.Flügelgewicht: 200 kg
Luftdurchlässigkeit: EN 12207 (Klasse 4)
Wasserdichtigkeit: EN 12208 (Klasse E1050)
Windwiderstand: EN 12210 (Klasse C5/B5)
Lärmschutz: DIN 4109
Einbruchhemmung: EN 1627 (RC2)
Berechnung des Uw-Koeffizienten: DIN EN ISO 10077-2 (≥1,1 Wm²/K)
Grundwerkstoff: EN AW-6060
Material des Polyamidbandes: PA66 GF25
Dichtungsmaterial: EPDM
Oberflächenbehandlung: DIN 17611
Qualitätskontrolle: DIN EN ISO 9001

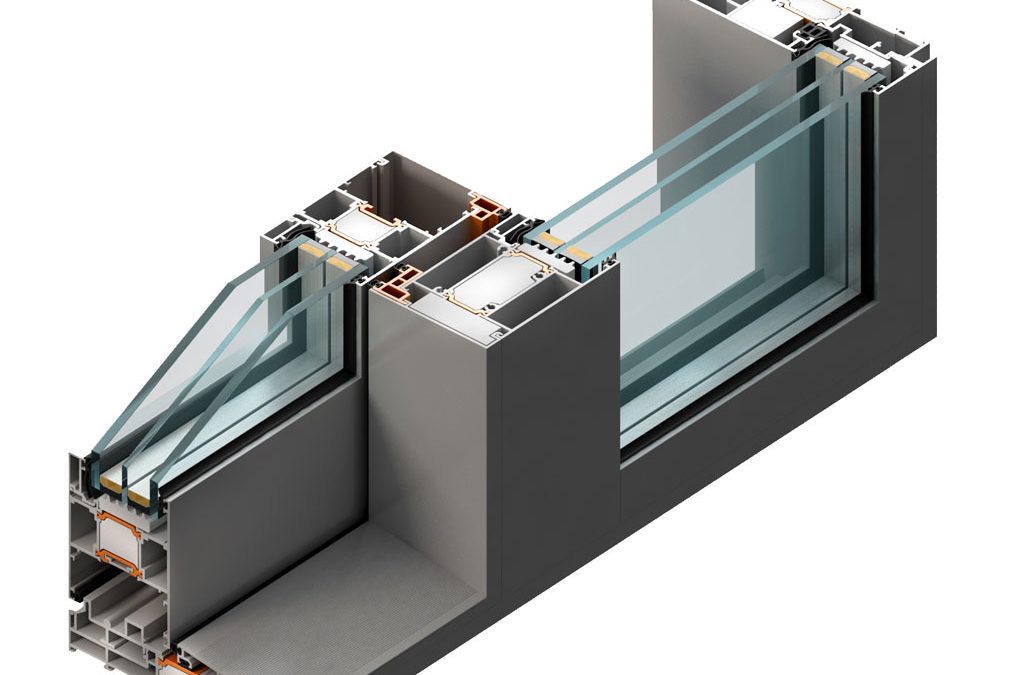

inowa
Inowa-2
